A beautiful waterfront view can’t make up for the wrong foundation. Geotechnical soil testing gives your custom home team a clear picture of what sits below the surface before plans, concrete, and construction costs are locked in.
Southwest Florida lots can look similar from the street while holding very different subsurface conditions, groundwater levels, fill histories, and flood exposure. We recommend starting with the property, then designing the home around real site conditions.
Key Takeaways
- Geotechnical soil testing identifies soil layers, groundwater, fill, bearing capacity, settlement risk, and other conditions before foundation and construction decisions are finalized.
- Southwest Florida properties can vary significantly, so the testing scope should reflect the lot, proposed home, flood exposure, access, drainage, and planned site improvements.
- Borings, test pits, soundings, field testing, and laboratory testing answer different questions; the geotechnical engineer should select the right combination for the property.
- A signed geotechnical report helps the structural engineer coordinate foundation design, engineered fill, compaction, drainage, elevation, and site-work requirements.
- Scheduling the investigation early can reduce the risk of redesigned foundations, unexpected fill or drainage costs, permit delays, and construction changes.
Why Geotechnical Soil Testing Comes Before Design
A geotechnical investigation studies the soil, rock, groundwater, and fill that will support your home. Geotechnical engineers use those findings to recommend a foundation approach that suits the lot and planned structure.
This work matters before you make an offer on vacant land, approve construction drawings, or begin a major addition. A low-priced lot can require unexpected fill, drainage work, deeper foundations, or additional engineering once the ground is evaluated.
Soil Capacity Is Only One Part of the Picture
Bearing capacity measures how much load the soil can support. Settlement measures how much the ground may move under that load over time. Both affect foundation design.
Sand is common across Southwest Florida, but no two parcels are identical. Shell layers, organic material, loose fill, soft pockets, and changing groundwater can affect how a slab, stem wall, pier, or pile system performs.
Inland parcels over limestone or karst may warrant a focused evaluation of sinkhole risk. This is especially true when a site has depressions, unusual settlement, or drainage anomalies. These conditions don’t mean every parcel requires a sinkhole study.
The Florida Residential Code includes presumptive soil values in some situations, including a commonly referenced 2,000 pounds per square foot for sand. That figure isn’t a design recommendation for your lot. Questionable conditions require a site-specific review.
Water, Flood Exposure, and Soil Work Together
Flood maps are a starting point, not a foundation plan. FEMA Zone AE and Zone VE classifications, finished-floor elevation, drainage, wave action, storm surge, and the current survey must all be coordinated with the soil findings.
A slab-on-grade foundation may suit an inland lot with appropriate elevation, drainage, and supporting soils. A coastal or flood-sensitive parcel may need an elevated system with deeper load transfer. The right choice follows the property, not the floor plan.
How a Geotechnical Investigation Is Performed

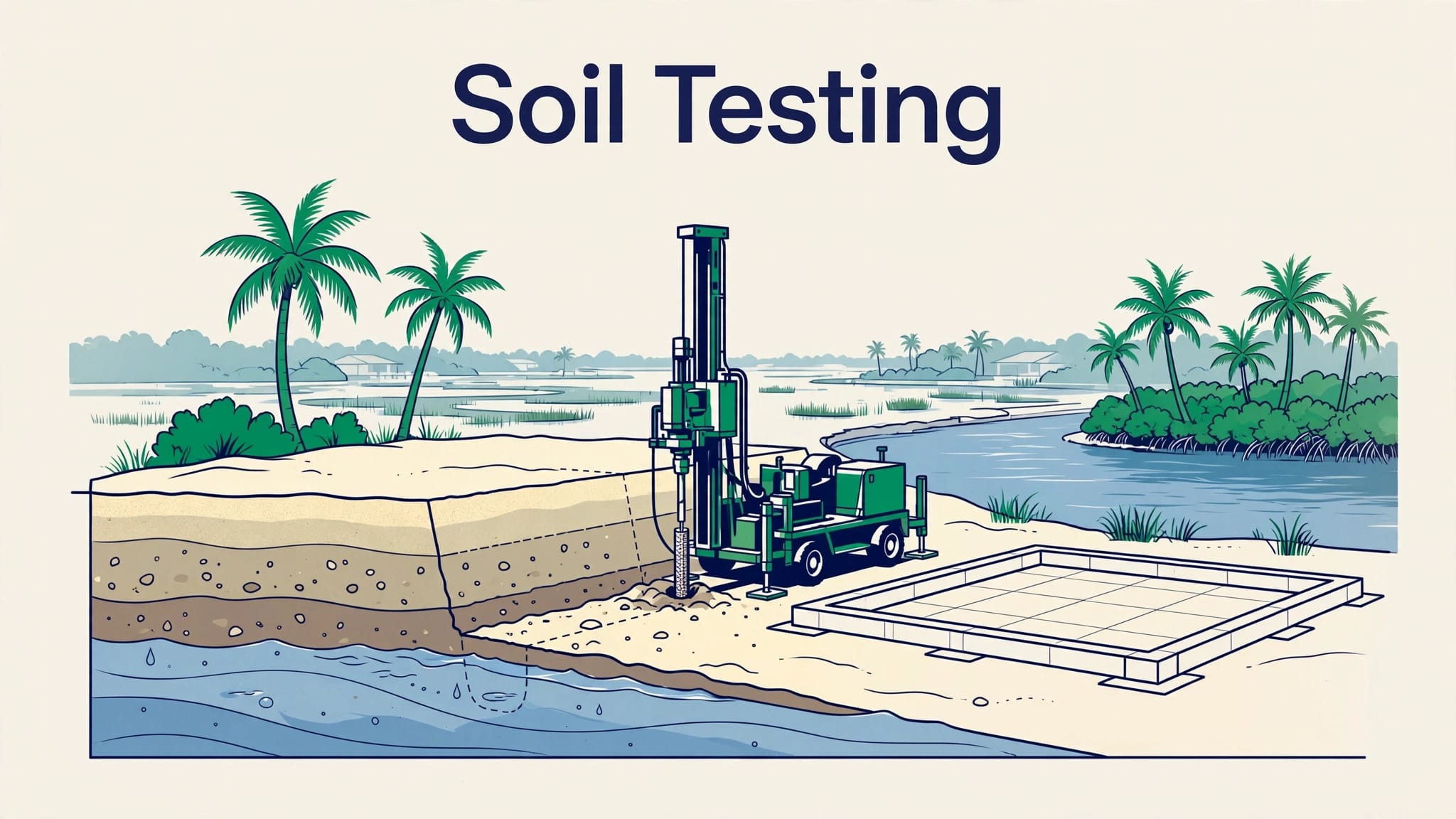

The investigation begins with the home location, planned footprint, site access, visible drainage patterns, and available records. Geotechnical soil testing brings those observations together with subsurface exploration and analysis.
For a useful background reference, Georgia Tech’s Manual on Subsurface Investigations shows why site review, exploration, sampling, and engineering analysis must work as one process.
Geotechnical engineers then set the scope based on the project and site conditions.
Borings, Soundings, and Test Pits
Test pits are shallow excavations that help evaluate near-surface material, old fill, roots, debris, or construction remnants. Borings are drilled at selected points to identify soil layers at depth.
Soundings and probes can provide information without removing as much material. Test pits can expose shallow fill, roots, debris, buried slabs, or construction remnants that a deeper boring may not fully characterize. The engineer records soil changes, sample depths, refusal points, and groundwater encountered during the work. Those logs become part of the final report.
A vacant lot may need a different scope than a teardown property with an old slab, buried utilities, or unknown fill. Waterfront, barrier-island, and low-lying sites often need more detailed review.
Field Testing and Laboratory Testing
Field testing shows how the soil behaves where it sits. Laboratory testing studies selected soil samples under controlled conditions. Neither replaces the other when the project needs both types of information.
The Florida Building Code’s Chapter 18 requirements for soils and foundations allow a registered design professional to define an investigation that may include borings, in-situ testing, laboratory work, and engineering calculations.
A soil report should identify where testing occurred, what materials were found, groundwater observations, and foundation recommendations. A verbal opinion isn’t a substitute for that documentation.
Soil Samples Must Be Collected Correctly
The type of soil samples collected determines which questions the engineer can answer. The sample also reveals soil composition.
Disturbed Samples Identify Soil Type
A disturbed sample is mixed or altered during drilling and handling. It can still show grain size, color, moisture content, organic content, and general classification.
These samples help classify sandy, shell-rich, silty, clayey, organic, or uncontrolled fill materials. They’re common in routine borings and can support several laboratory tests.
Undisturbed Samples Preserve Soil Structure
An undisturbed sample is collected with greater care to preserve its natural arrangement and moisture. It’s more difficult to obtain, especially in loose sand.
When possible, it helps engineers evaluate compressibility, settlement behavior, and shear strength. This detail can matter on sites with soft cohesive layers, compressible organic material, or a planned home with heavier loads.
Tests That Inform Foundation Design
Not every custom home needs every test. The engineer selects tools that answer the real questions raised by the lot, foundation loads, and proposed construction.
| Test | What It Measures | When It Can Help |
|---|---|---|
| Standard Penetration Test | Soil resistance during drilling | Density, layer changes, and bearing evaluation |
| Cone Penetration Test | Continuous resistance through the soil | Detailed profiles in suitable soils |
| Proctor Compaction Test | Moisture and density relationship | Engineered fill and site preparation |
| Atterberg limits | Clay plasticity and shrink-swell potential | Fine-grained soils and fill review |
| Triaxial or direct shear test | Shear strength | Settlement, slope, retaining, and foundation analysis |
| Permeability test | Water movement through soil | Drainage and groundwater planning |
| California Bearing Ratio | Subgrade support | Driveways, access roads, parking areas, and other pavement-related work |
Standard Penetration and Cone Penetration Testing
The Standard Penetration Test, often called an SPT, measures the blows needed to drive a split-spoon sampler through a set distance. Higher resistance can indicate denser material, while lower resistance may point to looser or softer layers.
Cone Penetration Testing, or CPT, pushes an instrumented cone into the soil and records resistance continuously. It can provide a detailed profile quickly in appropriate ground conditions. Boreholes still matter because they allow physical samples and groundwater observations.
The Federal Highway Administration’s soil and rock properties reference outlines how field and laboratory results, including soil properties, support geotechnical design.
Compaction, Plasticity, Strength, and Drainage Tests
A Proctor Compaction Test identifies the moisture content needed for fill to reach target soil density. This matters when imported fill or reworked soil will support the foundation, driveway, or finished grade.
A California Bearing Ratio can also help evaluate subgrade support for driveways, access roads, parking areas, or other pavement-related work.
Atterberg limits measure how fine-grained soil responds to water. High plasticity can point to greater shrink-swell concerns. A triaxial shear test evaluates shear strength, while direct shear testing provides a separate strength assessment. Permeability testing helps show how water moves through the soil.
These are not academic details. They can affect grading, drainage, fill placement, waterproofing, concrete work, and long-term performance.
Matching the Scope to Your Lot
A careful scope prevents both under-testing and unnecessary testing. We prefer to review the lot, the preliminary home plan, the survey, and flood information together before a testing program is ordered.
Straightforward Inland Lots
A relatively level inland parcel with nearby development may need a focused investigation. Nearby records can provide context, but they don’t confirm the parcel’s subsurface conditions.
The home size, number of stories, pool, outdoor kitchen, retaining features, and fill needs still matter. A neighboring slab doesn’t automatically mean a new slab is appropriate. Test pits can supplement borings when shallow fill, buried debris, or an old slab needs confirmation.
Waterfront and Complex Properties
Waterfront lots, former agricultural land, parcels with visible fill, teardown sites, and low-lying properties deserve closer review. Shoreline conditions, seawalls, salt exposure, high groundwater, and erosion can all affect planning. Restricted access, soft ground, standing water, or a narrow lot can affect where drilling equipment can safely work and therefore affect the investigation scope.
A deeper or more detailed investigation may be appropriate when a home is elevated or supported by piles. Inland limestone or karst settings, depressions, unexplained settlement, or unusual groundwater behavior may justify a focused sinkhole-risk review by the geotechnical professional. The report should be coordinated with the structural engineer, surveyor, floodplain review, and local permitting requirements.
How the Report Shapes Construction Decisions
The geotechnical soil testing report isn’t a generic approval to build. Its recommendations are incorporated into foundation design and coordinated with the structural engineer’s plans.
Foundation and Concrete Planning
A usable report may include boring logs, test-pit observations where applicable, groundwater observations, laboratory results, compaction criteria, and assumptions or limitations.
It may recommend a shallow foundation, engineered fill, a deeper system, specific bearing criteria, or additional evaluation. It may also identify unsuitable near-surface material that should be removed or addressed before concrete placement.
Our structural concrete services follow the approved plans and documented site conditions. Formwork, reinforcement, placement, and finishing are only part of quality foundation work. The preparation below the concrete matters first.
Drainage, Elevation, and Site Coordination
Geotechnical findings should be reviewed alongside the current survey and floodplain requirements. The Florida Building Commission’s current code resources provide the statewide framework, but local requirements still apply.
Foundation testing does not determine the finished-floor elevation by itself. It supports a coordinated decision that also considers flood exposure, drainage, structural loads, utilities, access, and required inspections.
Timing and Budget Questions to Settle Early
Schedule geotechnical soil testing while evaluating the land and before architectural and structural plans are finalized. Late findings can require redesigned foundations, revised elevations, new site-work pricing, and permit resubmittals.
Costs and schedules vary with the number and depth of borings or test pits, site access, groundwater, sample needs, laboratory work, engineering analysis, and permit coordination. For any construction project, the proposal should identify these assumptions clearly. No responsible team should promise one fixed price or turnaround time without reviewing the lot.
Ask the geotechnical engineer and builder these questions early:
- Does the testing scope, including borings or test pits, match the proposed home, pool, retaining work, and site improvements?
- Will the report address groundwater, fill, bearing capacity, settlement, and drainage conditions?
- What deliverables are included, such as a signed report, boring and test-pit logs, groundwater observations, laboratory results, foundation recommendations, fill and compaction criteria, and stated limitations?
- Are elevated foundations or deeper systems being considered because of flood or coastal exposure?
- Does the schedule account for site access, seasonal rainfall, high groundwater, drainage, floodplain review, and required inspections?
- What site work, fill, compaction testing, and foundation details should be included in the construction budget?
Frequently Asked Questions
Is Soil Testing Required for Every Custom Home?
Not always. The code allows limited exceptions when satisfactory nearby information is available, but site conditions or the building official may require an investigation. Even when it isn’t mandatory, testing can prevent costly surprises on an unfamiliar lot.
Is a Slab Foundation Suitable Near the Coast?
It can be, when soil conditions, drainage, elevation, flood exposure, and the approved design support it. A slab isn’t automatically the right choice for a waterfront or flood-prone property. The structural engineer and geotechnical professional should make that determination.
Are Pile Foundations Better Than Slabs?
Pile foundations can transfer loads deeper and raise the living area above expected flood levels. They also require detailed engineering for depth, lateral loads, connections, corrosion protection, access, and construction tolerances. They are not automatically better for every property.
Build the Foundation Around the Property
The best custom homes begin below grade. Geotechnical soil testing gives you practical information before foundation choices, site-work costs, and construction schedules become difficult to change.
